The S+S Multirail
Heads Up - Longer Delivery Times For Rails
We're in the throes of moving and improving our warehouse. This means there'll be a temporary delay in getting the rails to you, expect 10 working days for now.

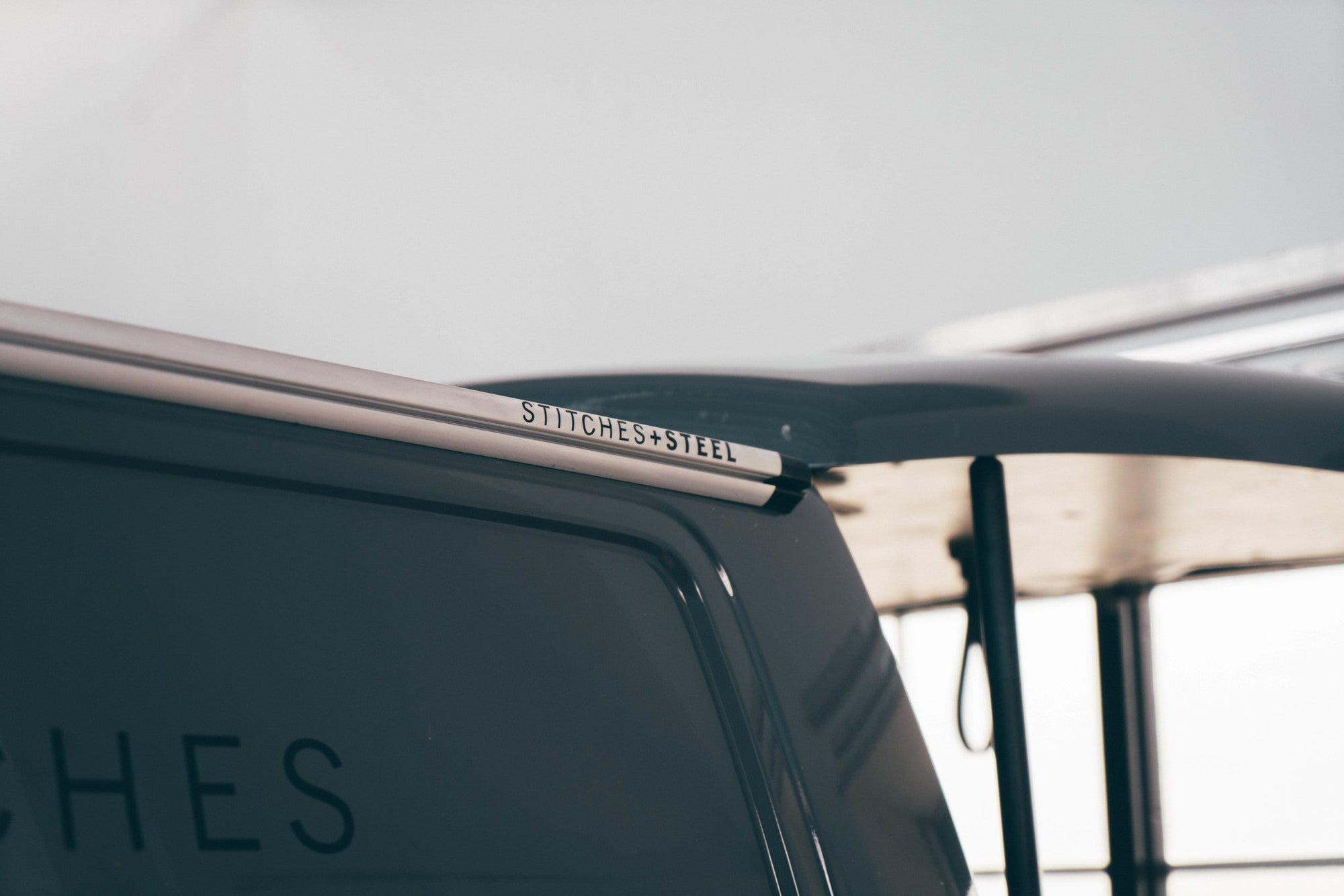

Our own design, our own fit and made to work with not only with our products but also a whole host of others too. Probably the most versatile VW T4/ T5/ T6 and campervan awning rail on the market, the S+S Multi-Rail is multi-purpose. Also providing a gutter for your van to disperse rainwater easily. You can fit a canopy or awning to the gutter using a pole and clamps and there is also a second channel for fitting your awning directly if it has a Kador or bolt rope like our own Tarp awning. Strong and light this awning rail is mill finished, perfect for painting or powder coating should you wish to colour match.
CONTENTS
Multirail x1
We make two different rails, both identical, the only difference being the length. The are supplied in two sizes, 2600mm or 2800mm long (2690mm or 2890mm with end caps fitted) and are perfect for all S+S awnings whether you purchase long or short.
All our side mounted awnings measure 2450mm and when paired with the multirail can be fitted to LWB, SWB, LHD and RHD drive vans as the end caps are identical yet 'handed.' The "C" section of the rail measures 9.5mm but the jaws of the C section measure 5mm. This means that the rail accepts awnings with a bolt rope or Kador strip size of anything from about 5.5mm to 9.5 mm.

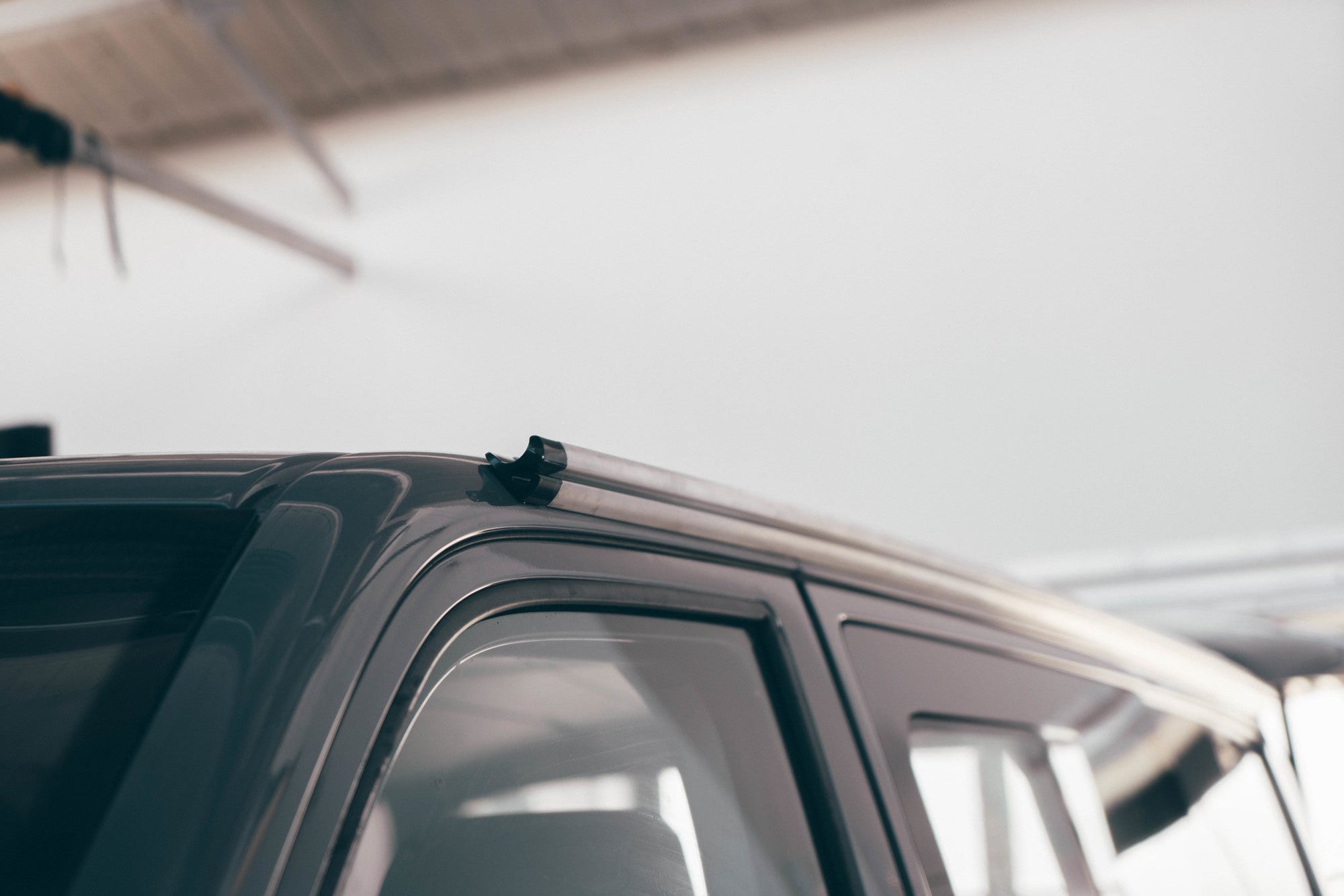

End Caps x2
Made from high pressure, plastic injection moulding and designed specifically for our S + S multirail. These measure 45mm long and fit easily into each end of the rail with additional sikaflex.
Zinc Plated Screws x14
Included for fitting however, you will need some form of sealant for bonding it to the van. (For reference, we have used Sikaflex on our van, however any marine grade sealant will work well).
DETAILS
Rail Dimensions, Option 2.6m
260cm (L), 3.5cm (W) Excluding End Caps; 2.69m (L), 3.5cm (W) Including End Caps.
Rail Dimensions, Option 2.8m
280cm (L), 3.5cm (W) Excluding End Caps; 2.89m (L), 3.5cm (W) Including End Caps.
SHIPPING
This rail includes Free Shipping to Mainland UK. We take care when packing the rails and supply them in a long cardboard tube with end caps. Whilst we've yet to have one damaged in transit, please sign for the rails 'unchecked' as we can't accept responsibility if signed for and they are damaged.
FITTING INSTRUCTIONS
Need fitting instructions for your new Multirail? Simply click on the link below. - Campervan- Multirail
INSTALL VIDEO
Will this fit my STITCHES + STEEL Awning?
Yes, we've developed these with S+S products in mind first and foremost, we have also tinkered with the dimensions which means they also work with Vango, Driveaway kits, figure of eight adaptors and almost every other accessory we've came across making them incredibly universal.
How long will it take to arrive?
Each order is hand picked, packed and sent at our HQ. We use DX and while those guys state two working days they've been known to arrive sooner. They do have a habit of being hidden in sheds, recycling bins, etc. occasionally, so please check around the house before getting in touch if your order hasn't arrived and it's showing as delivered. Please also give us a chance to deliver within the shipping window we've given you. The tracking number provided will only work once delivery has been attempted. Strange we know.
Will this fit your particular variant of van?
Yes, we whole heartedly believe so, between this rail and the other two we should have you covered for every eventuality. If you're not sure- grab a tape measure and check your van. We also have a raised version of this rail and also a 'multirail.' Feel free to check those adverts and our other products for adventures on the road if you get a chance too.
